Reliability Test System
Main Applications
- Comply with various standards：GR-326-CORE, GR-1435- CORE, GR-910-CORE, GR-1209-CORE, GR-2866-CORE, Verizon FOC
- Optical Performance Testing of Optical Passive Devices
- Long-term stability test
Platform + module design, multi-application and scalable
The 11-slot OMEGA universal optical test platform is compatible with various functional test modules including the RLM series insertion and return loss test modules，hot Plug-pull,programmable, highly scalable, easy to maintain and manage, and low in overall cost.Support network，USB，physical button control，it also integrates modules such as optical switches, highly stable light sources, and high-precision optical power meters to achieve reliability testing of passive devices.

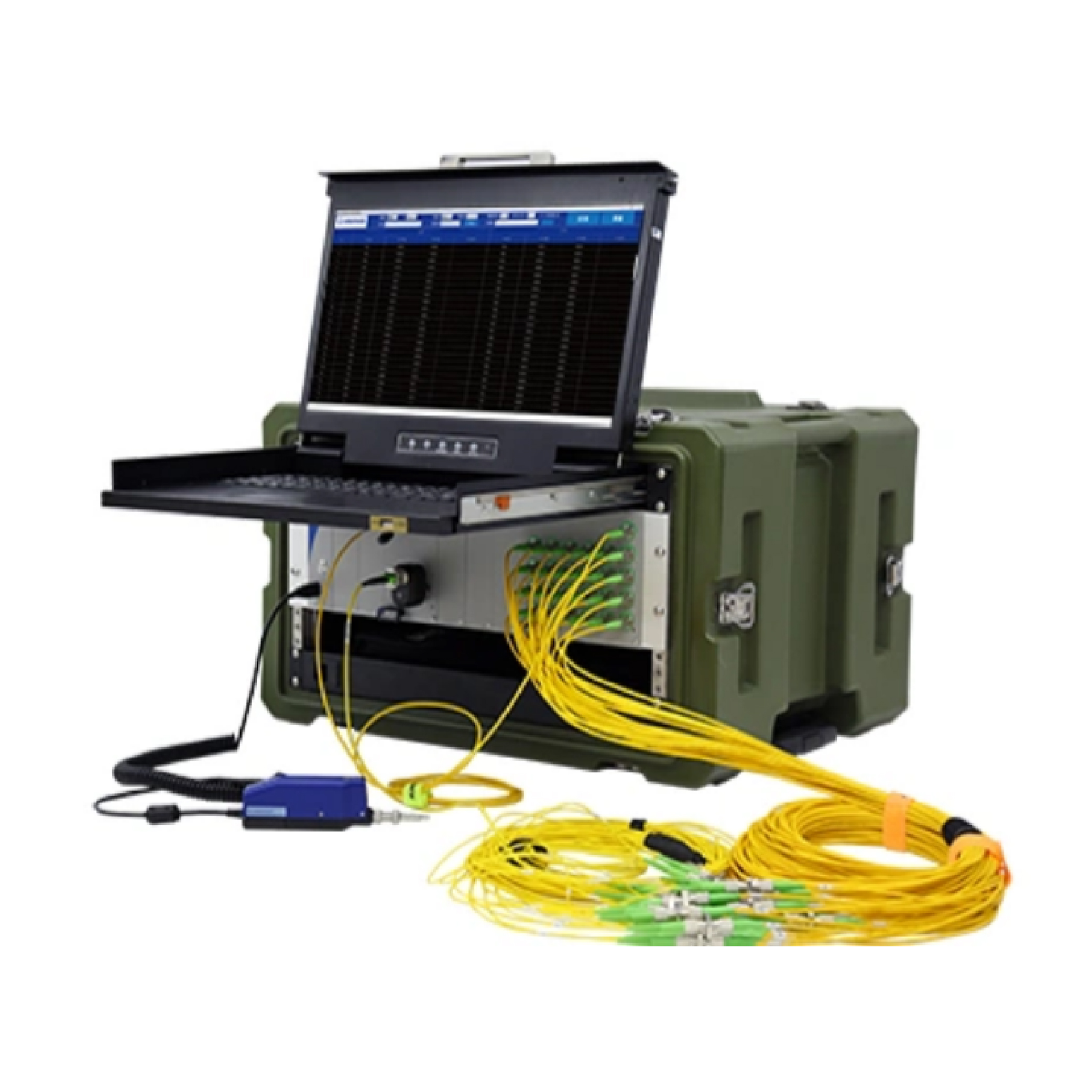

Moveable one-stop test system
In the style of a trolley suitcase, the test equipment and the PC for processing data are integrated inside the box. The equipment can be moved and can complete the entire test task independently.

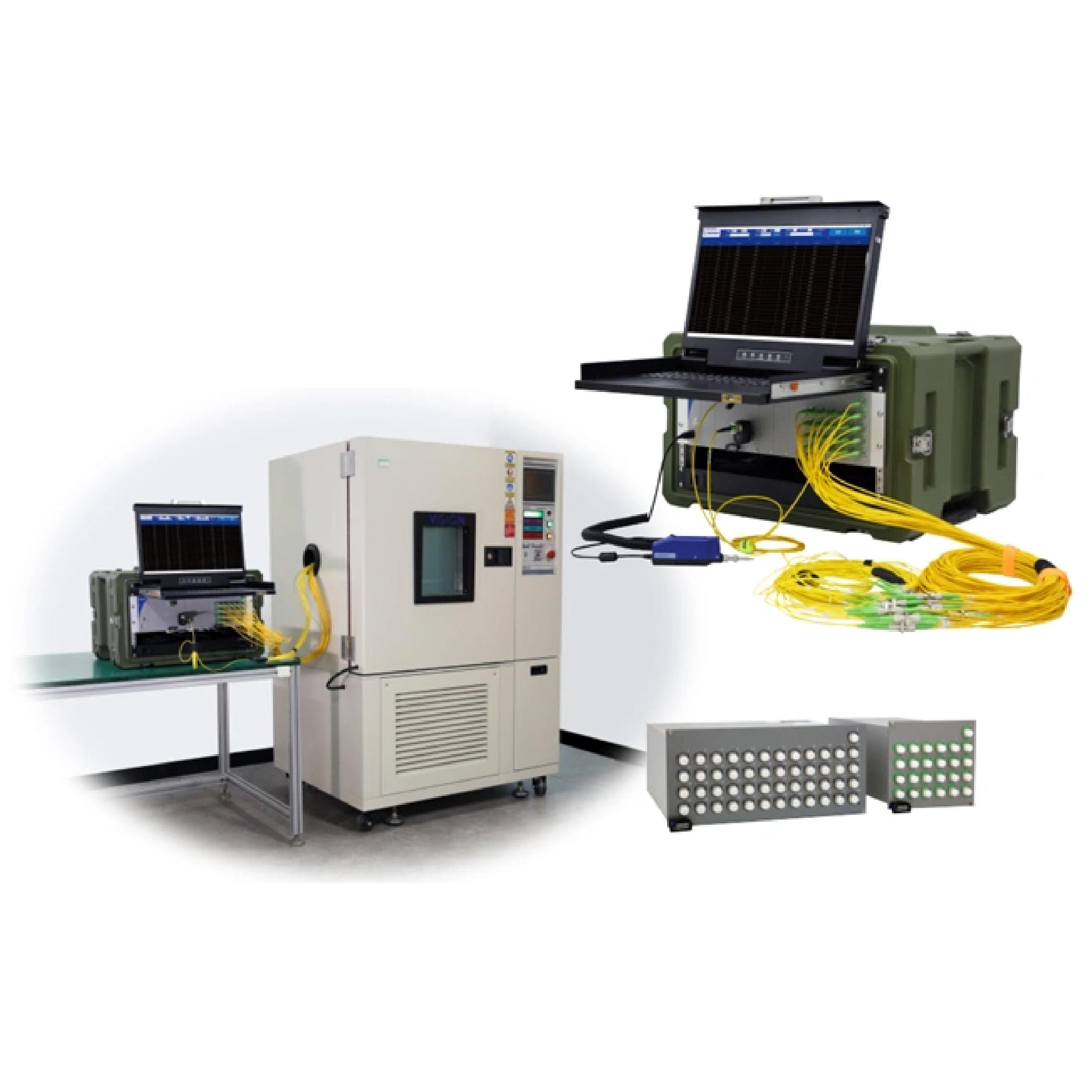

High device integration, one system can complete all kinds of tests
Different from traditional testing methods,Dimension’s reliability test system integrates the insertion and return loss test module, optical switch module, and light source to complete the one-time measurement of insertion and return loss, and can formulate relevant solutions for different environments.
Specifications
Testing for IL: Smaller Errors, Greater Stability
Use higher power and stable SLS light source, and perform light splitting through PLC to meet multi-channel simultaneous testing. Avoid the interference of external optical switching on the stability and uniformity of the test, and use the test link with higher stability to complete the single-to-single high-precision insertion loss stability test.
Specifications
