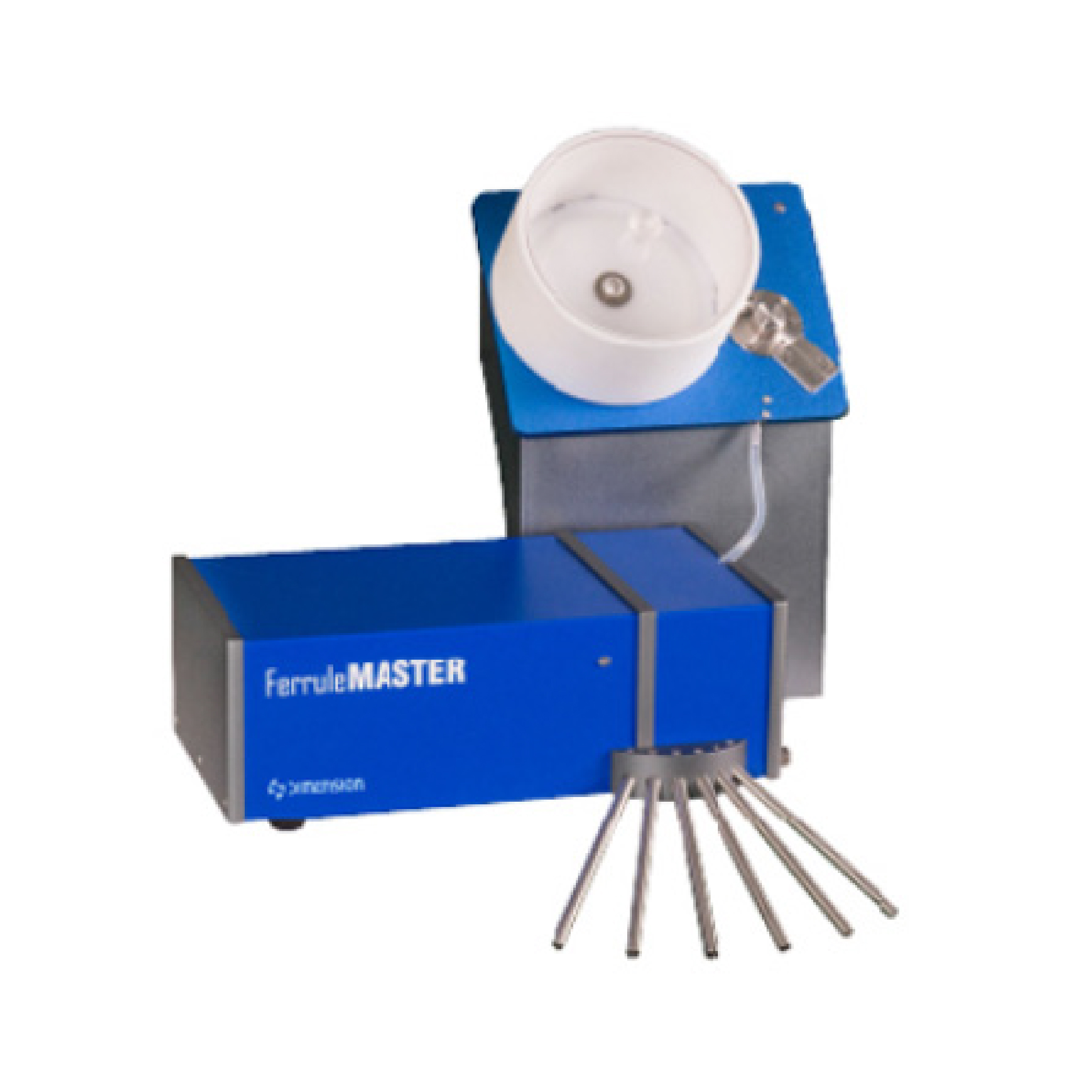

Ferrule Master LC/SC Concentricity Inspector

Ferrule Master is designed by Dimension Co. Ltd based on experience in development of precision instruments for many years and industry characteristics. Ferrule Master could feed, focus, measure and classify automatically. It could test over 1000 PCS ferrules in one hour, no laborer required. Ferrule Master has the high performance and accuracy and high repeatablility with the superior image processing. It is intelligent and easy to operate and maintain. Clear user interface, easy to opaerate, stable performance and powerful analysis capability make the Ferrule Master is the best instrument in material inspection and mass production.

Main Features

Powerful detection function
Accurate and high repeatability
Intelligent
Prefect data analysis capability
Automated and easy to operate

Categories: Concentricity Core Tuner, Dimension Technology, Ferrule Master LC/SC Concentricity Inspector

Description

High Performance

Ferrule Master could measure ferrule’s concentricity, roundness of outer diameter, inner diameter, roundness of inner diameter and do the classification in one procedure with the efficient algorithm developed by Dimension Co. Ltd .

Intelligent

Ferrule Master could work well even if there are dirty spots on the ferrules.

Accurate and High Repeatability

Taking 5PCS 2.5MM core as an example, the data obtained by Ferrule MASTER concentricity tester were tested 20 times each.

Automated

Ferrule Master could feed,measure,check and classify automatically.It could test 1000 PCS ferrules in one hour,no laborer required.

Ferrule Master LC/SC Concentricity Inspector
